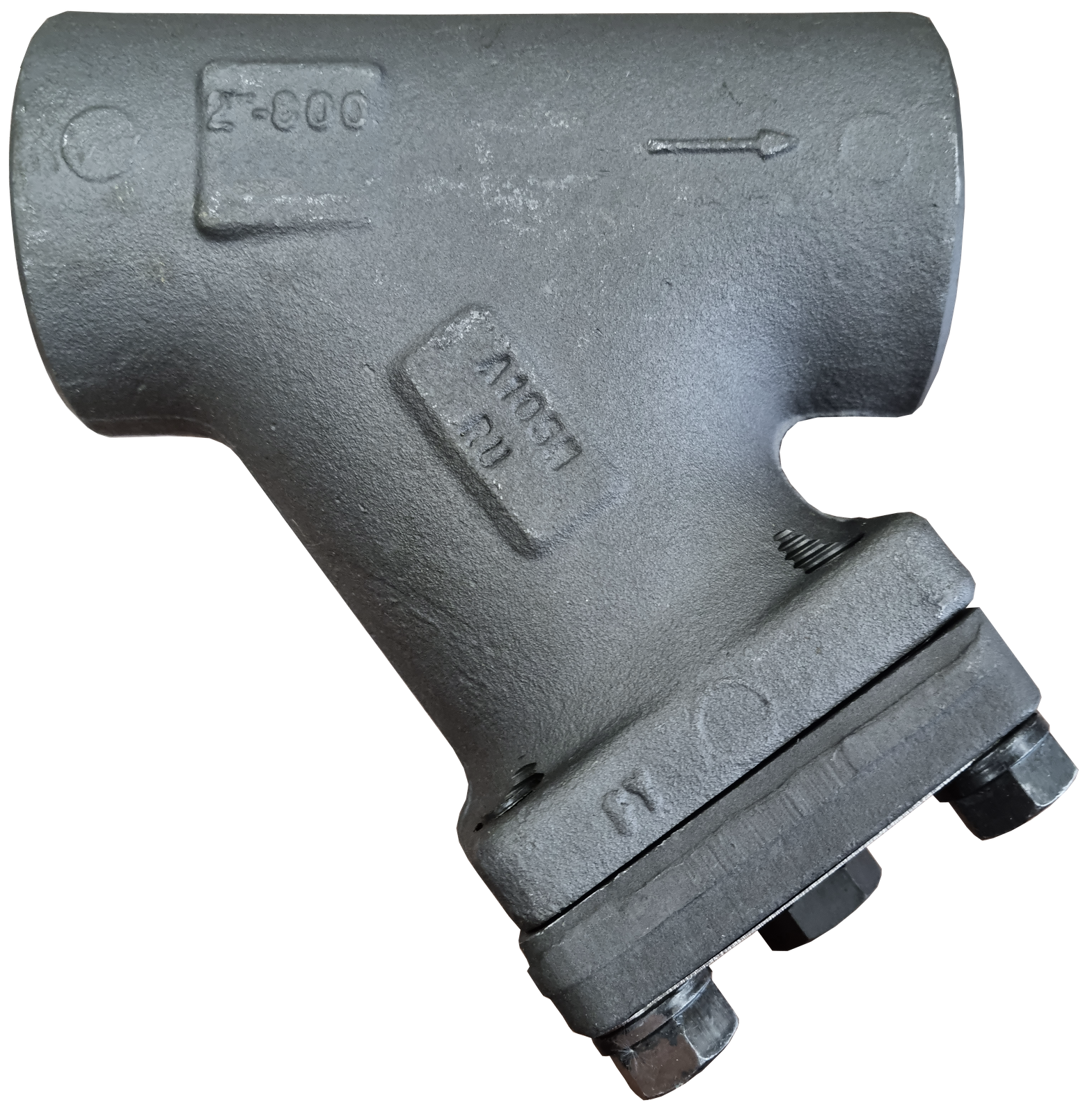

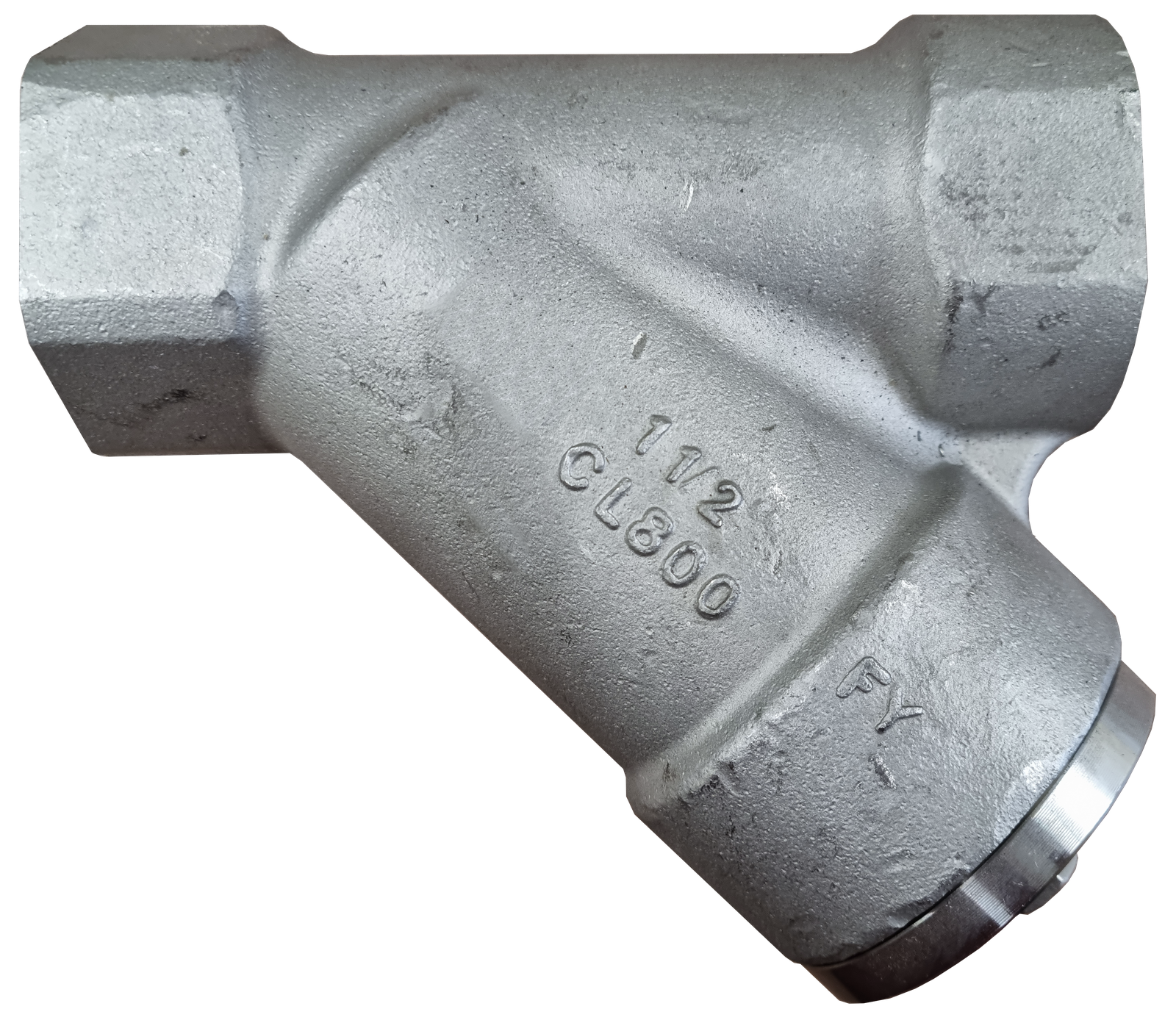

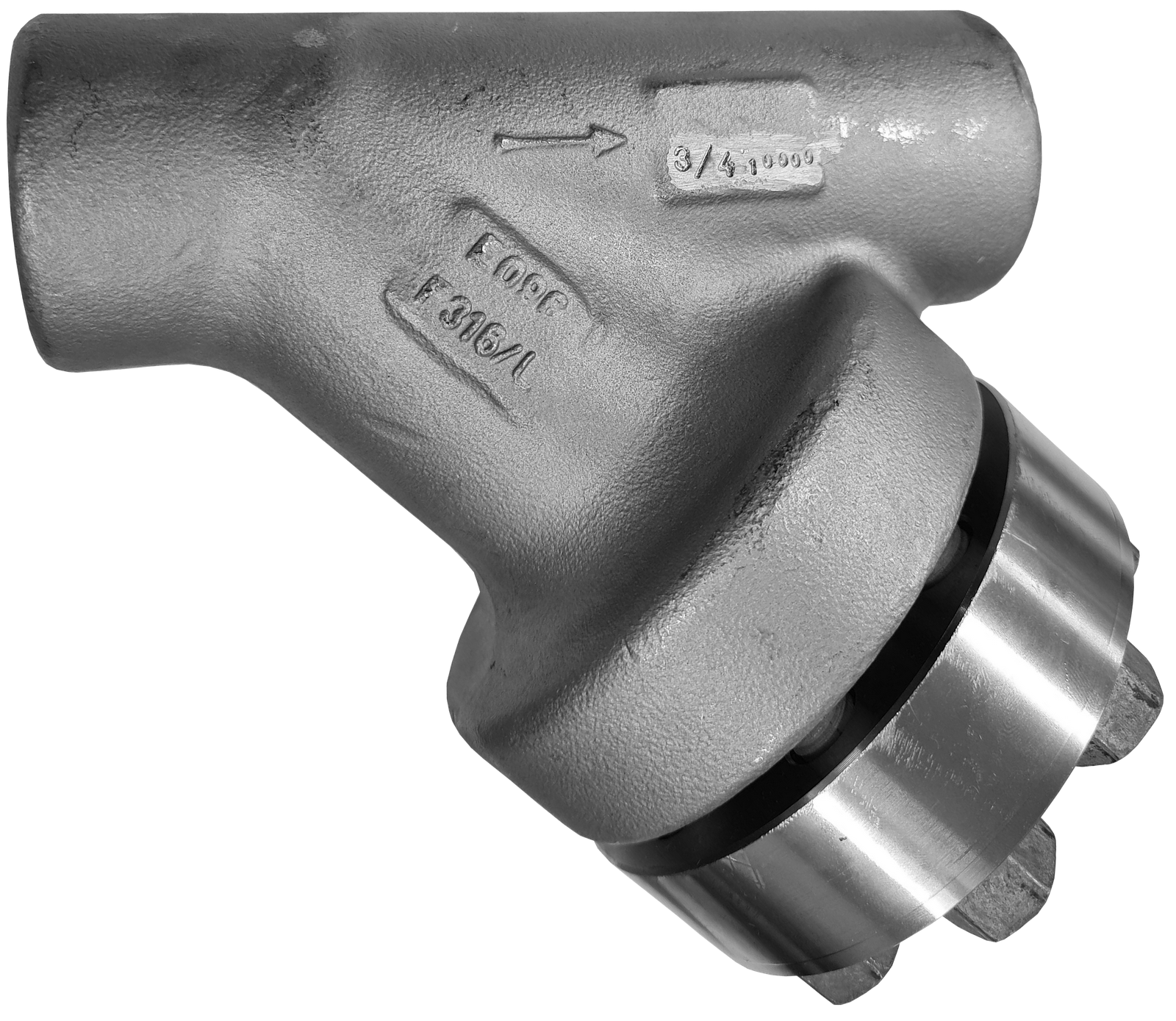

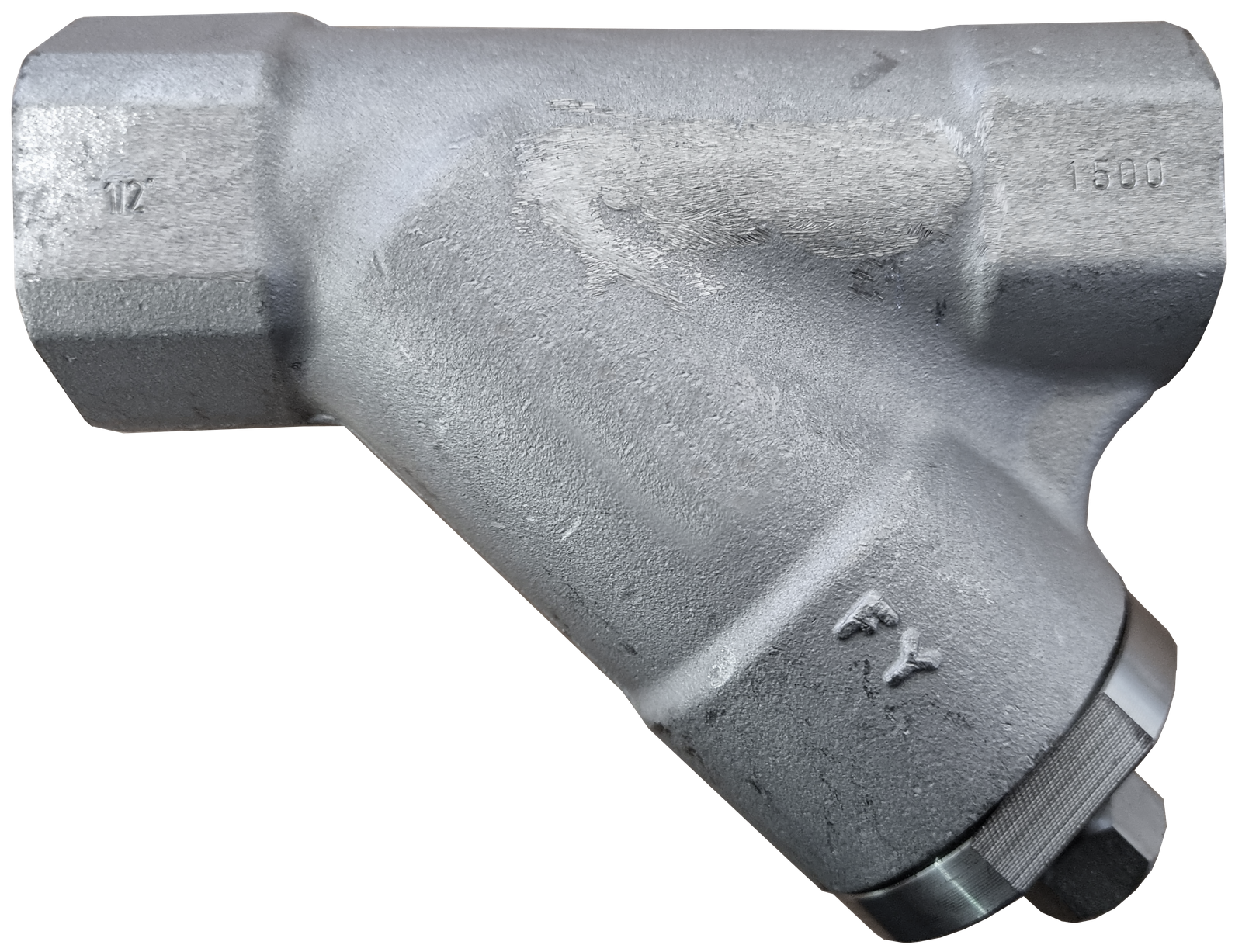

Y-Type Strainers: Socket Weld / Threaded / Butt-Weld

Construction: Screwed Cover / Bolted Cover.
Main Design Codes: ​ANSI B16.11 / B16.1.20.1 / B16.25.
Pressure Class: ANSI 800 - 4500.
Size Range:  ½" - 2" in stock.
Connection Ends: Stock NPT/BSP/SW.  BW on request.
Main Materials: Carbon Steel ​A105N & Stainless steel A182 F316/L.
Filtration: Standard 0.8mm Perf - Filtration 6mm to 50μm available on request.
Further materials available: A350 LF2, F11, F22 Chrome-moly, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO, Titanium.

Datasheets

 ​Datasheet 16 – Fig Y800 - Y-Type Strainer

 ​​Datasheet 17 – Fig Y1500 - Y-Type Strainer

 Datasheet 18 – Fig Y2500 - Y-Type Strainer

Kaysafe Engineering Limited stock and supply a full range of Y-Type strainers. This section details threaded, socket-weld and butt-weld Y-Type strainers. These Y-Type strainers are generally of forged materials, however we can supply cast and fabricated Y-Type strainers.
Sizes available are from ½” – 2”, class ratings from Class 800 through Class 4500. They range from Threaded NPT to ANSI B1.20.1 or Socket weld to ANSI B16.11. & Butt weld to ANSI B16.25.
Materials include A105, A350 LF2, A182 F316, A182 F316L Stainless steel, A182 F51 Duplex, A182 F53 & F55 Super Duplex, A182 F11, A182 F9, A182 F22 Chrome-Moly steels, A182 F44 254SMO, Monel, Titanium, Hastelloy.
Non-destructive testing available: Dye Penetrant inspection (DPI); Magnetic Particle inspection (MPI); Positive Alloy Material Identification (PMI).
