Temporary Strainers: Basket Type

Main Design Codes: B16.5/47, BS4504/DIN
Pressure Class: ANSI 150 - 2500.
Size Range: 1" - 36"
Main Materials: 316/L Stainless Steel.  Exotic materials available on request.
Filtration: Standard screen – 3 mm perf. (Mesh overlay available on request)
Further materials available: CuNi Copper-Nickel, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO, Titanium.


 ​Datasheet 30 – Fig TB705 - Basket (Top Hat) Strainer (ASA Flanges)

 ​Datasheet 30A – Fig TB705 - Basket (Top Hat) Strainer (PN Flanges)

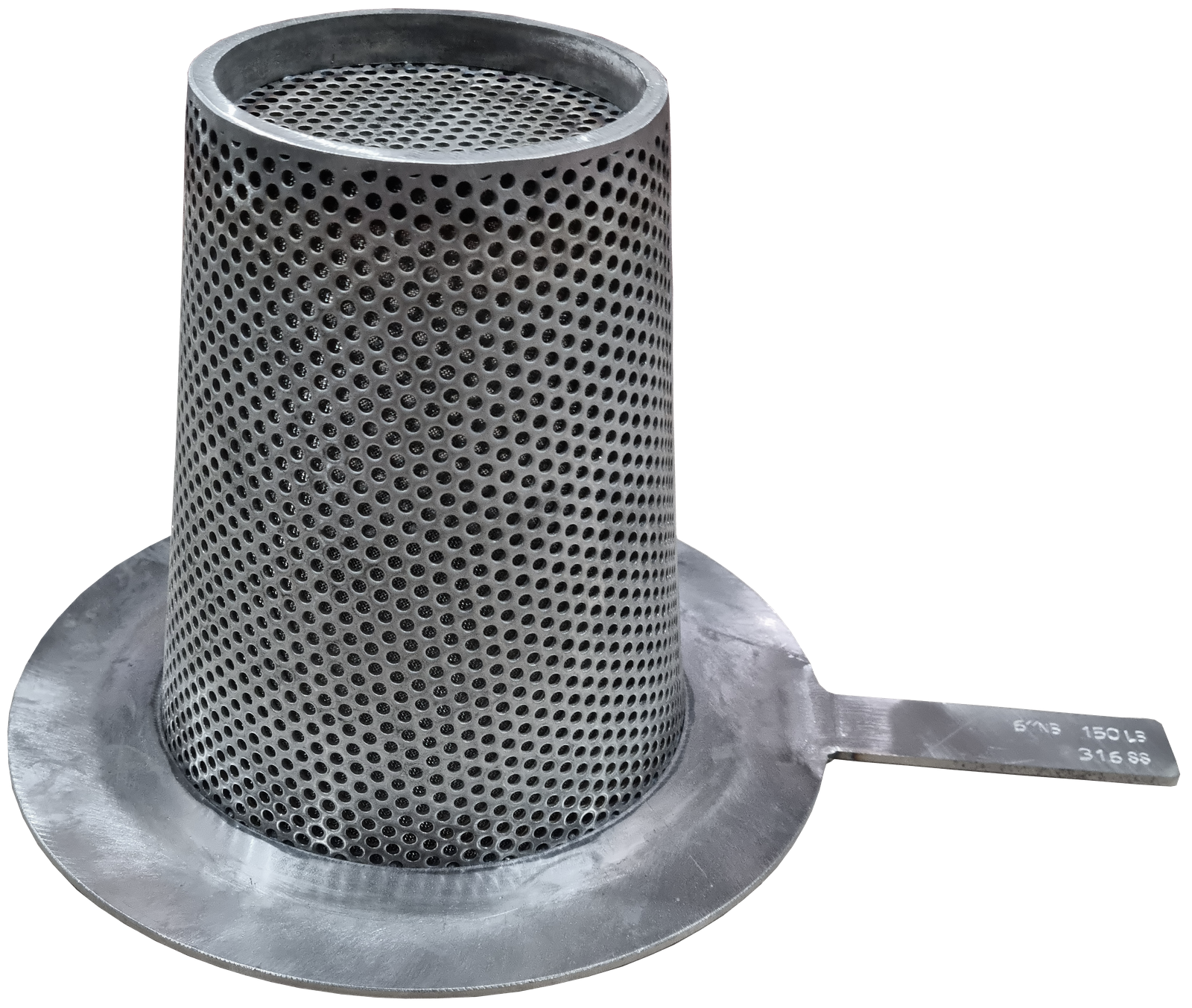

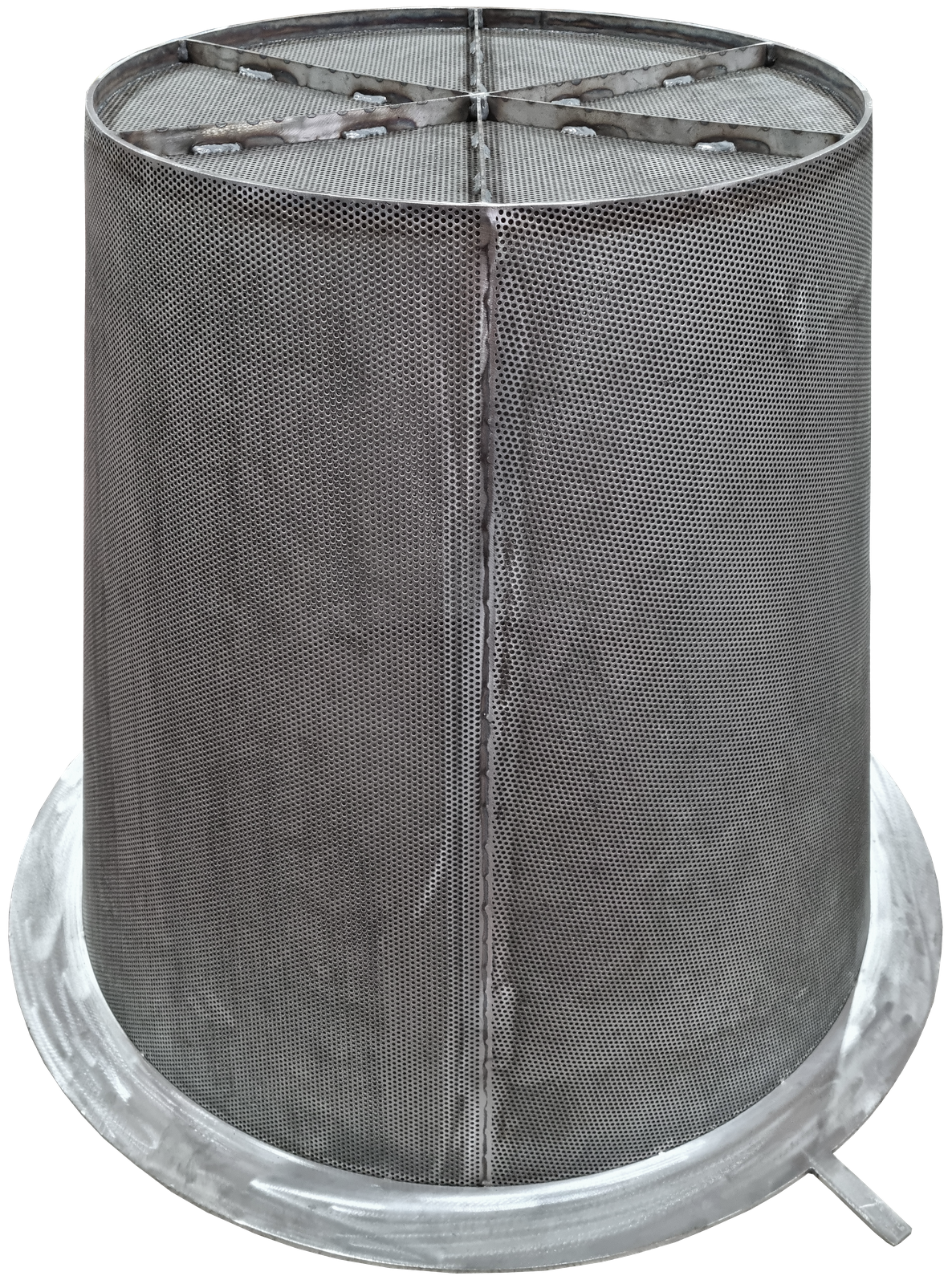

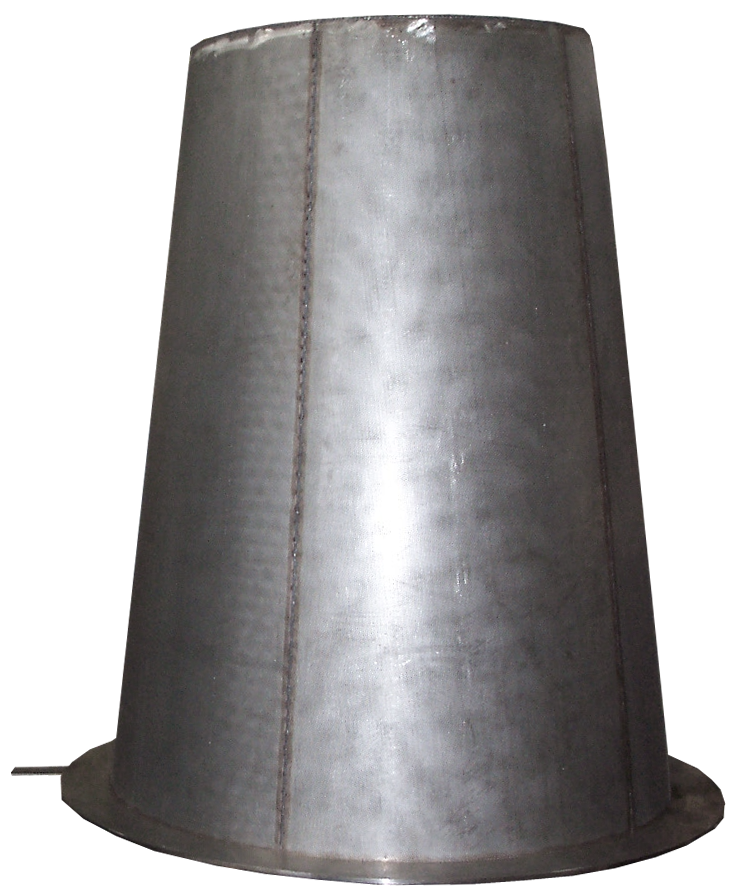

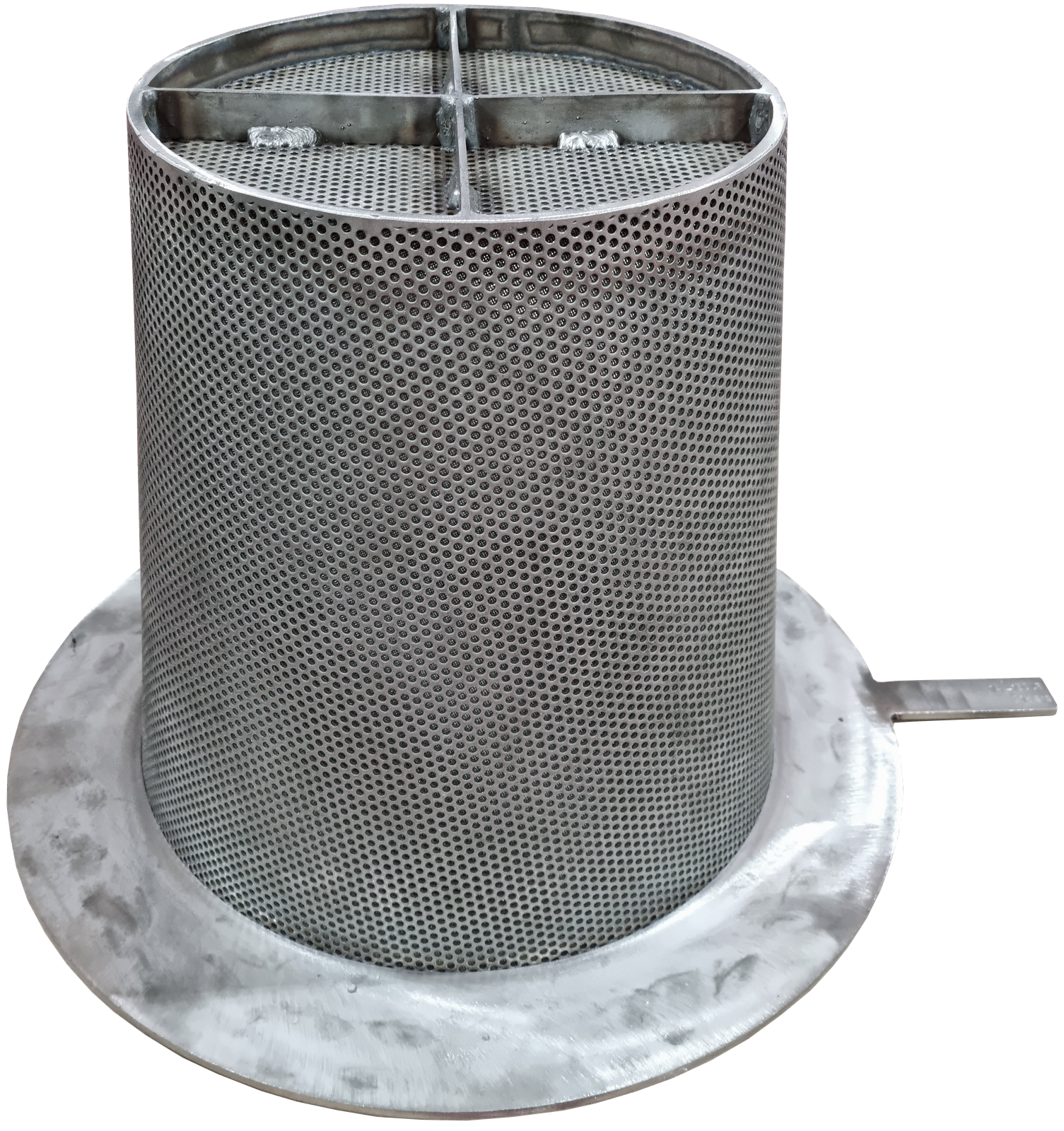

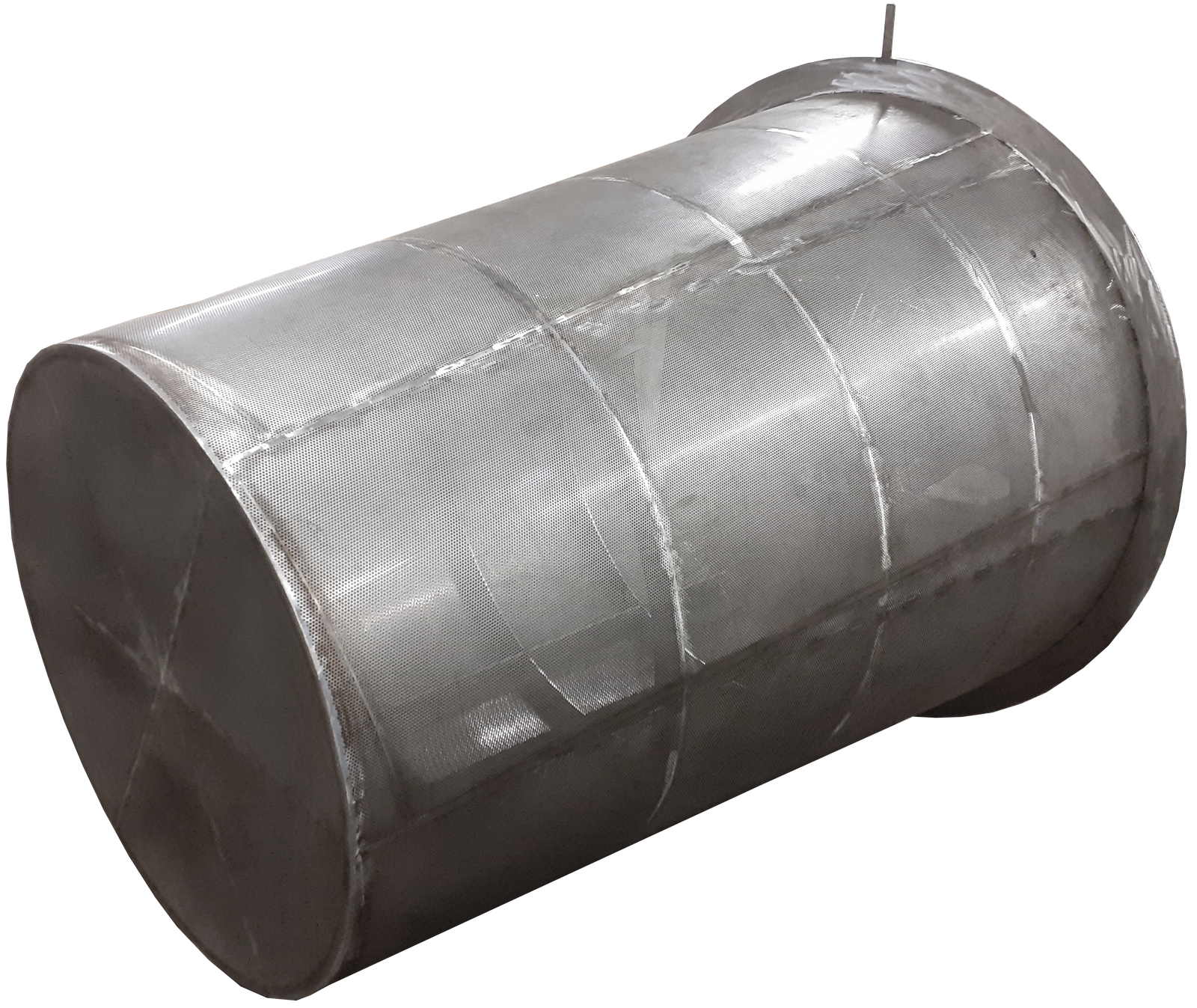

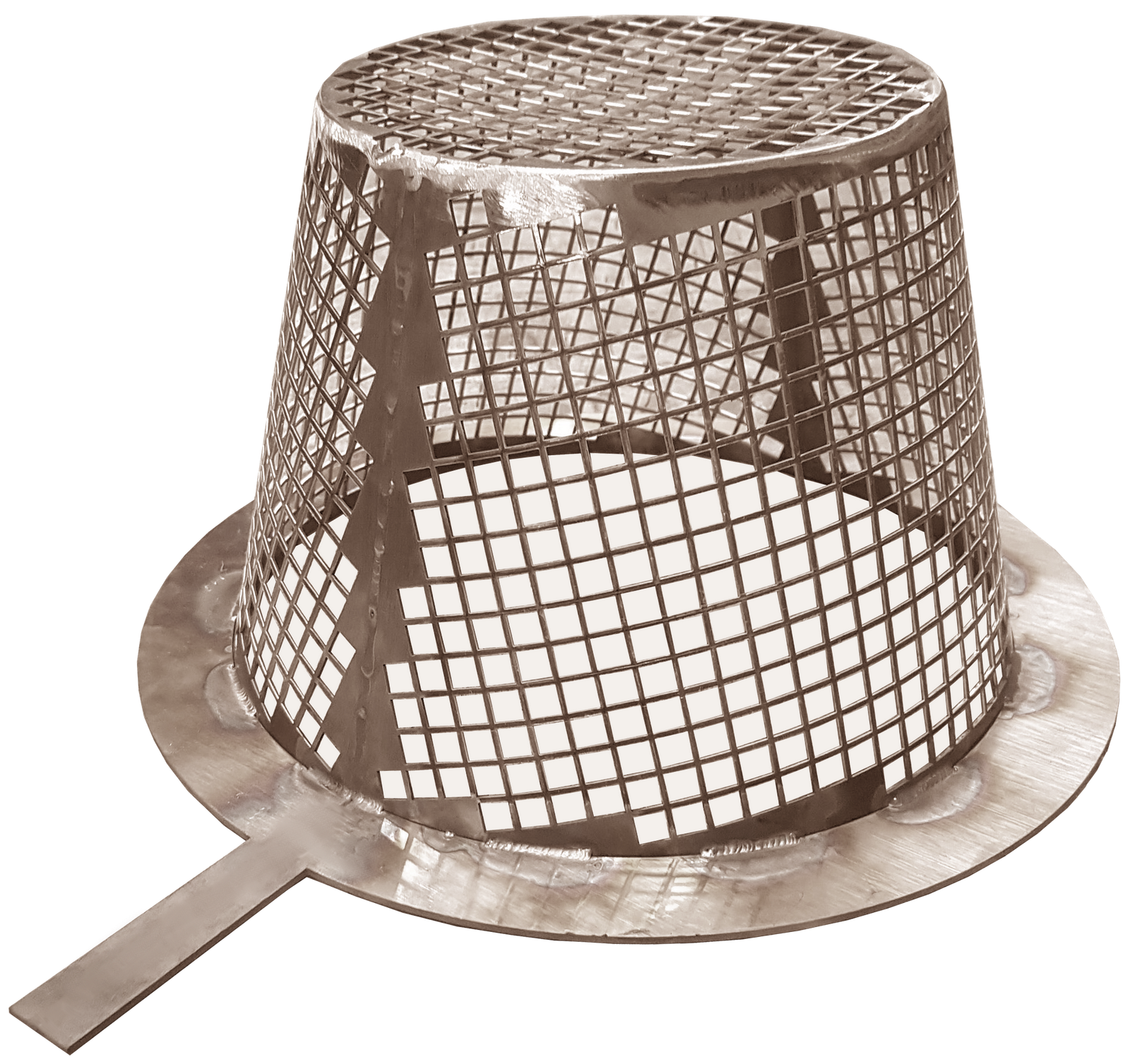

Kaysafe Engineering Ltd supply and manufacture a full range of fabricated temporary Basket strainers. These fabricated temporary Basket strainers are manufactured to suit flanged connections and are generally of perforated plate and woven wire mesh. They can be manufactured to your standards dependent on your contractual needs.
Sizes available are from 1” – 36”, class ratings from Class 150 through Class 2500. They are manufactured to suit Flanged RF and RTJ to ANSI B16.5.
Materials include Stainless steel, Duplex stainless steel, Super Duplex stainless steel, Monel, Hastelloy & Titanium.Non-destructive testing available: Dye Penetrant inspection (DPI) & Positive Alloy Material Identification (PMI).
