Temporary Strainers: Conical Type

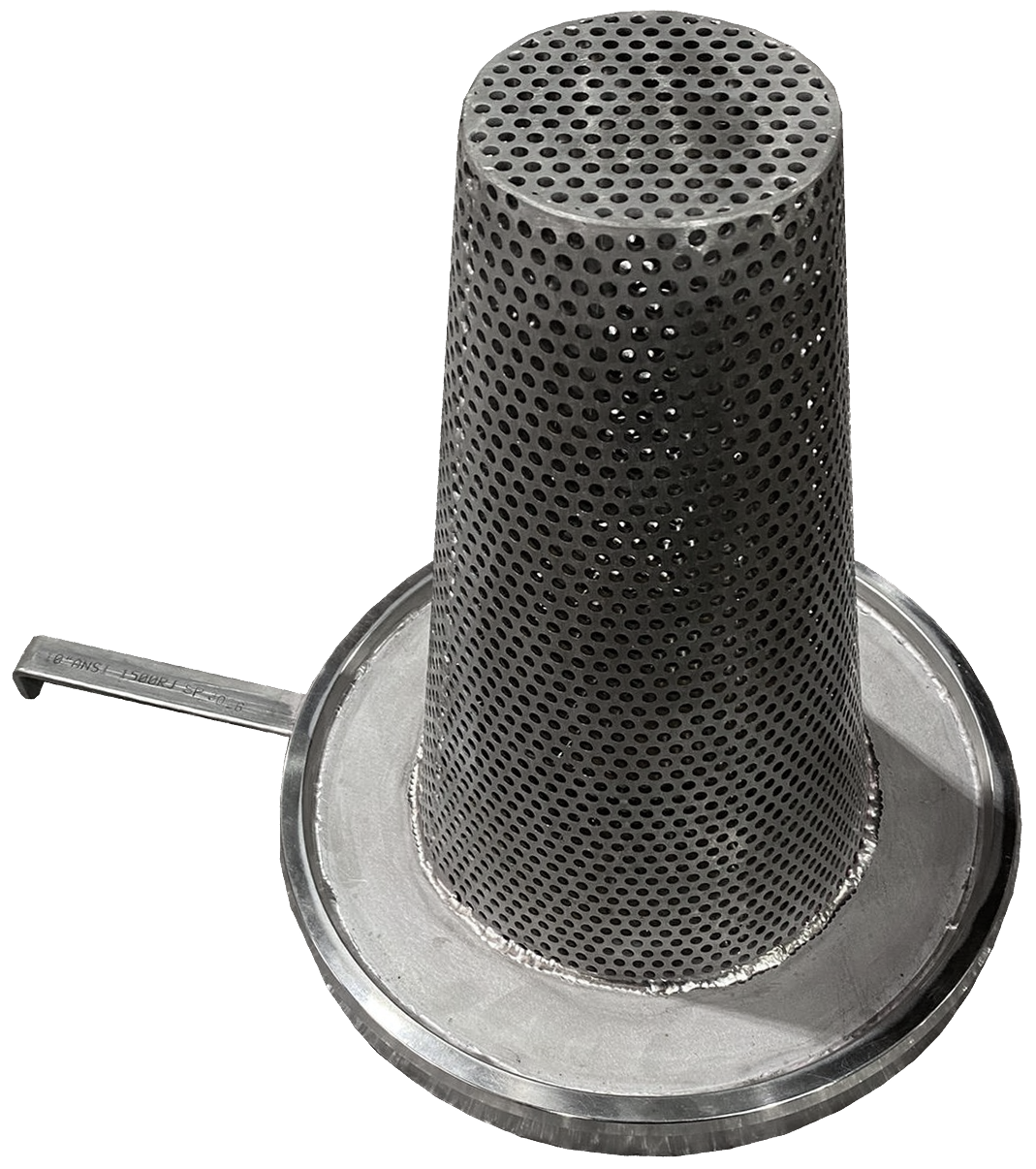

10" ASA150 316/L Conical Strainer

10" ASA150 316/L Conical Strainer

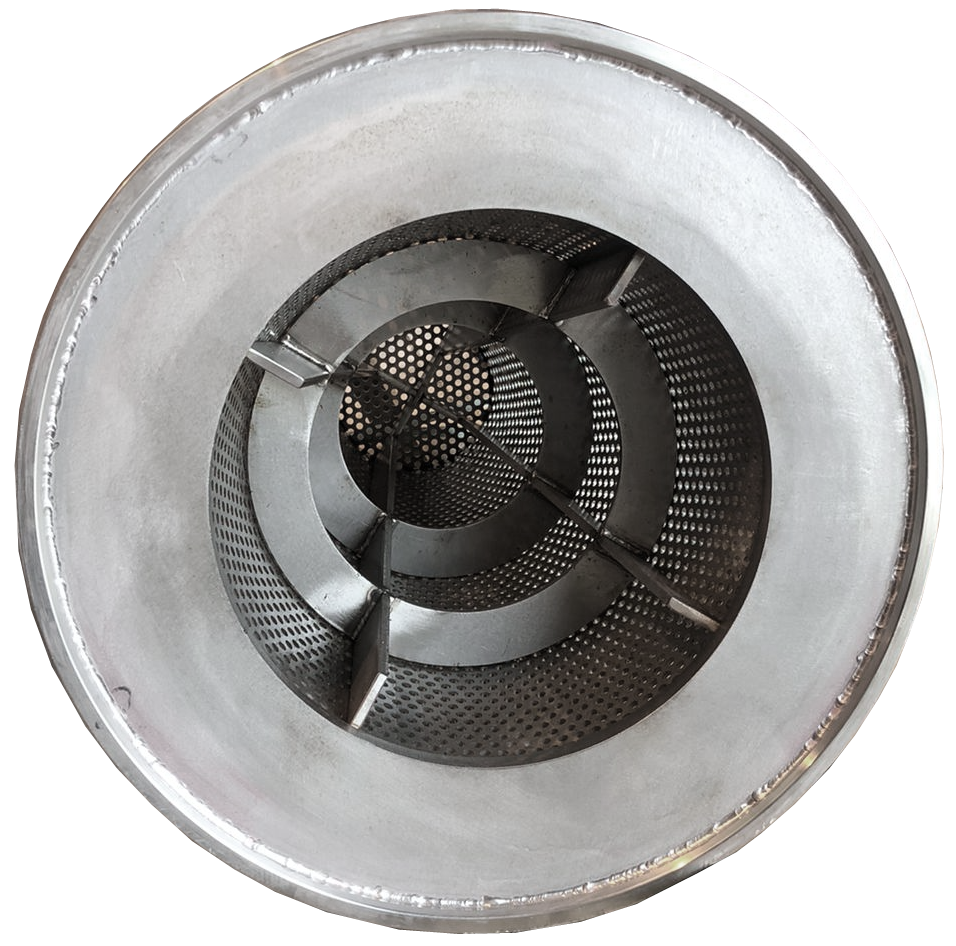

6" 300RTJ 316/L Conical Strainer

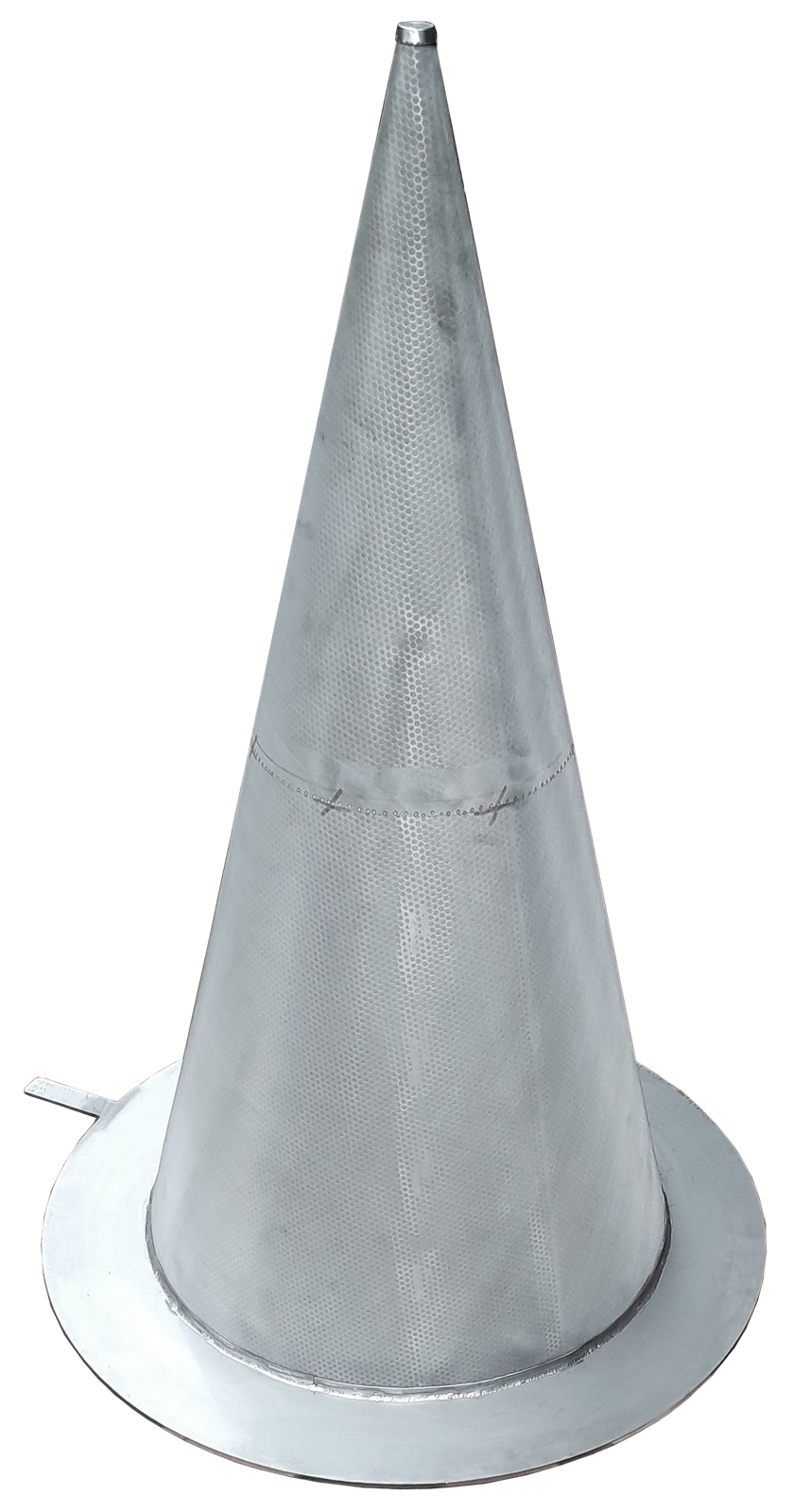

10" ASA1500 RTJ 316/L Conical Strainer

10" ASA1500 RTJ 316/L Conical Strainer

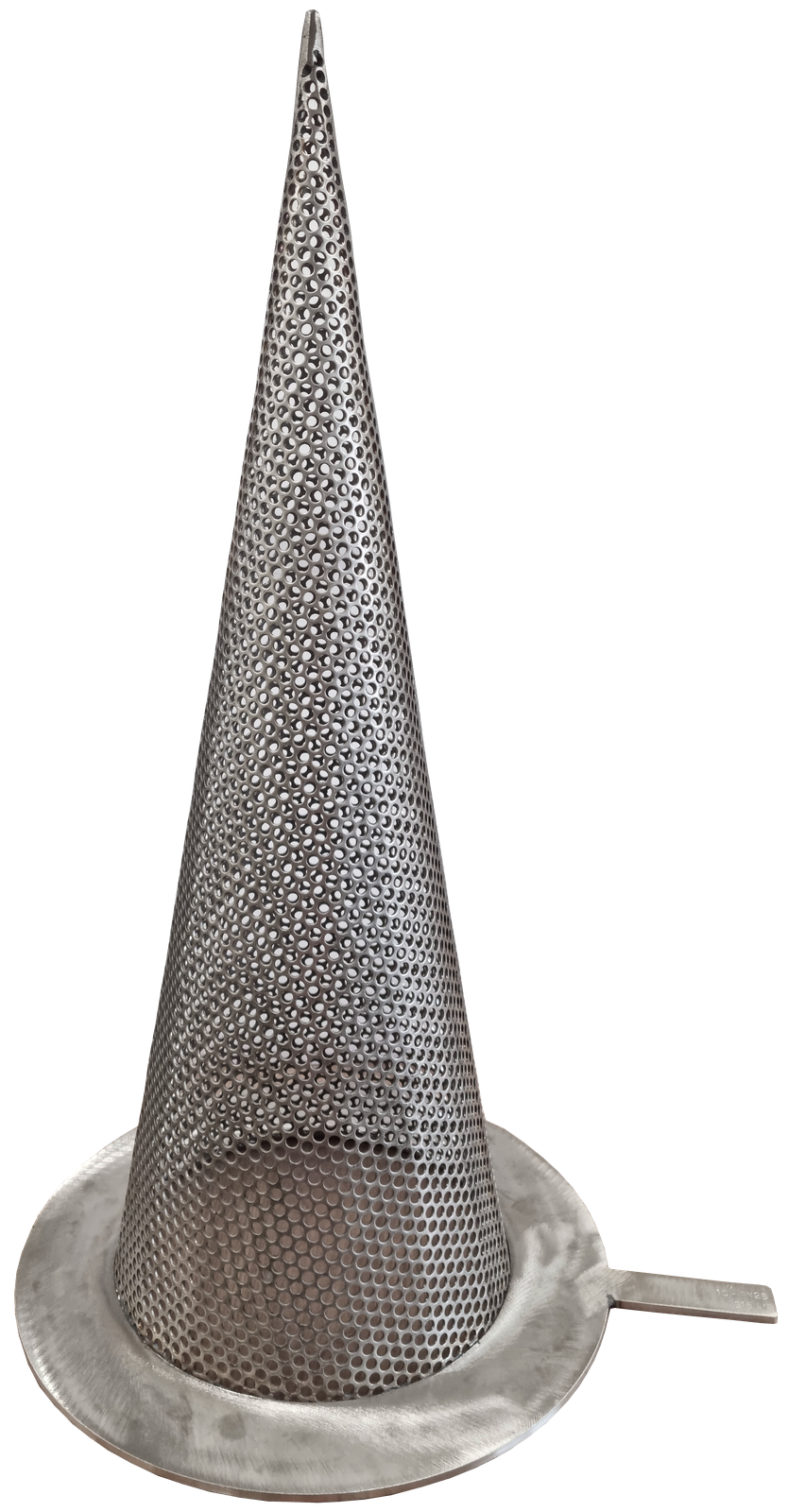

6" ASA900 316/L Conical Strainer

6" ASA900 316/L Conical Strainer

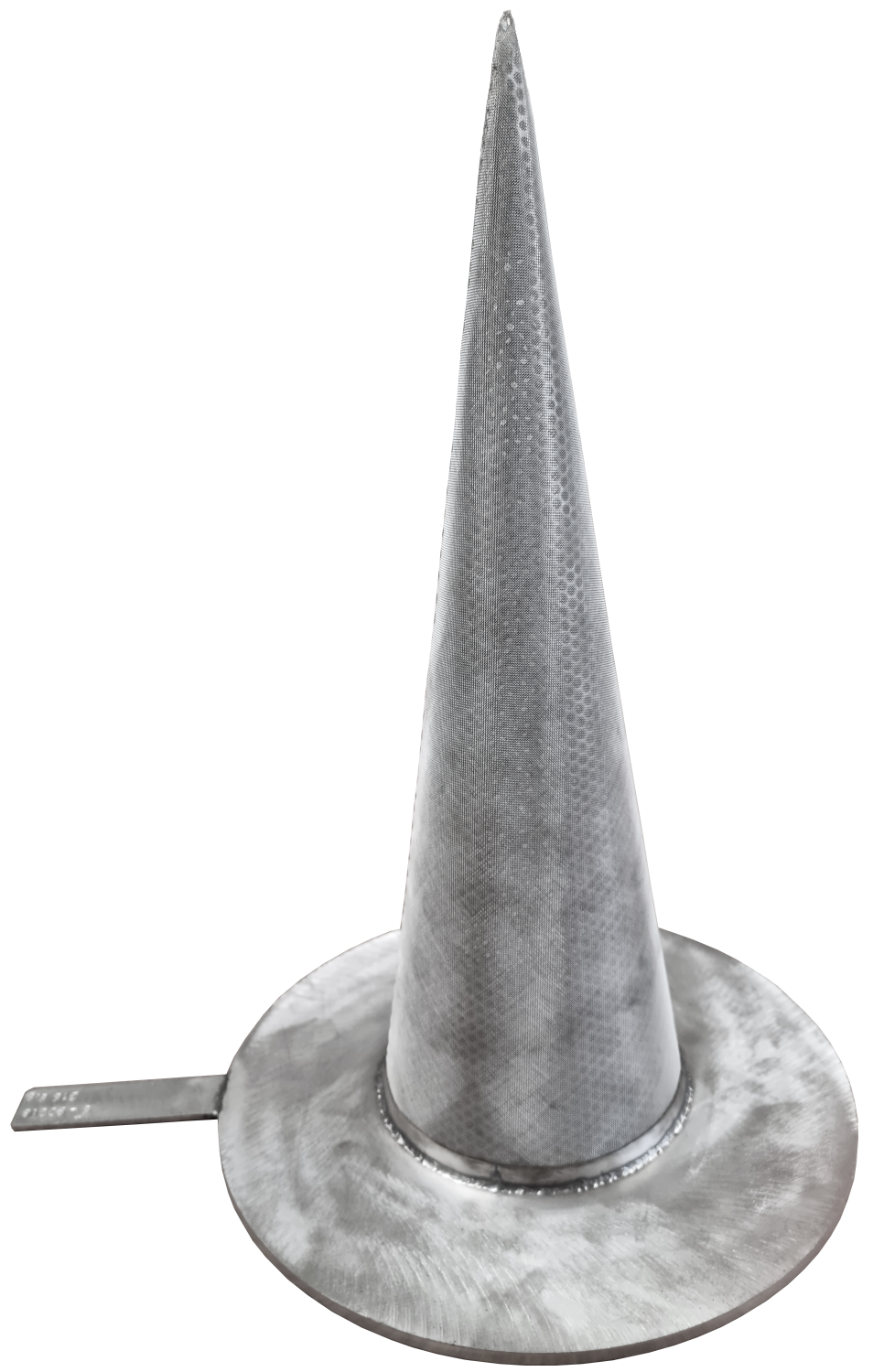

12" ASA2500 RTJ 316/L Conical Strainer

12" ASA2500 RTJ 316/L Conical Strainer

10" PN25 316/L Conical Strainer

10" PN25 316/L Conical Strainer

Main Design Codes: B16.5/47, BS4504/DIN
Pressure Class: ANSI 150 - 2500.
Size Range: 1" - 56"
Main Materials: 316/L Stainless Steel.  Exotic materials avaliable on request.
Filtration: Standard screen – 3 mm perf. (Mesh overlay available on request)
Further materials available: CuNi Copper-Nickel, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO, Titanium.

Datasheets

 ​Datasheet 29 – Fig TC704 - Conical (WItches Hat) Strainer (ASA Flanges)

 ​​Datasheet 29A – Fig TC704 - Conical (WItches Hat) Strainer (PN Flanges)

Kaysafe Engineering Ltd supply and manufacture a full range of fabricated Conical strainers (Witches Hats). These temporary fabricated Conical strainers are manufactured to suit flanged connections and are generally of perforated plate and woven wire mesh. They can be manufactured to your standards, dependant on your contractual needs.
Sizes available are from 1” – 36”, class ratings from Class 150 through Class 2500. They are manufactured to suit Flanged RF and RTJ to ANSI B16.5.
Materials include Stainless Steel, Copper-Nickel, Duplex stainless steel, Super Duplex stainless steel, Monel, Hastelloy & Titanium.Non-destructive testing available: Dye Penetrant Inspection (DPI) & Positive Alloy Material Identification (PMI).
