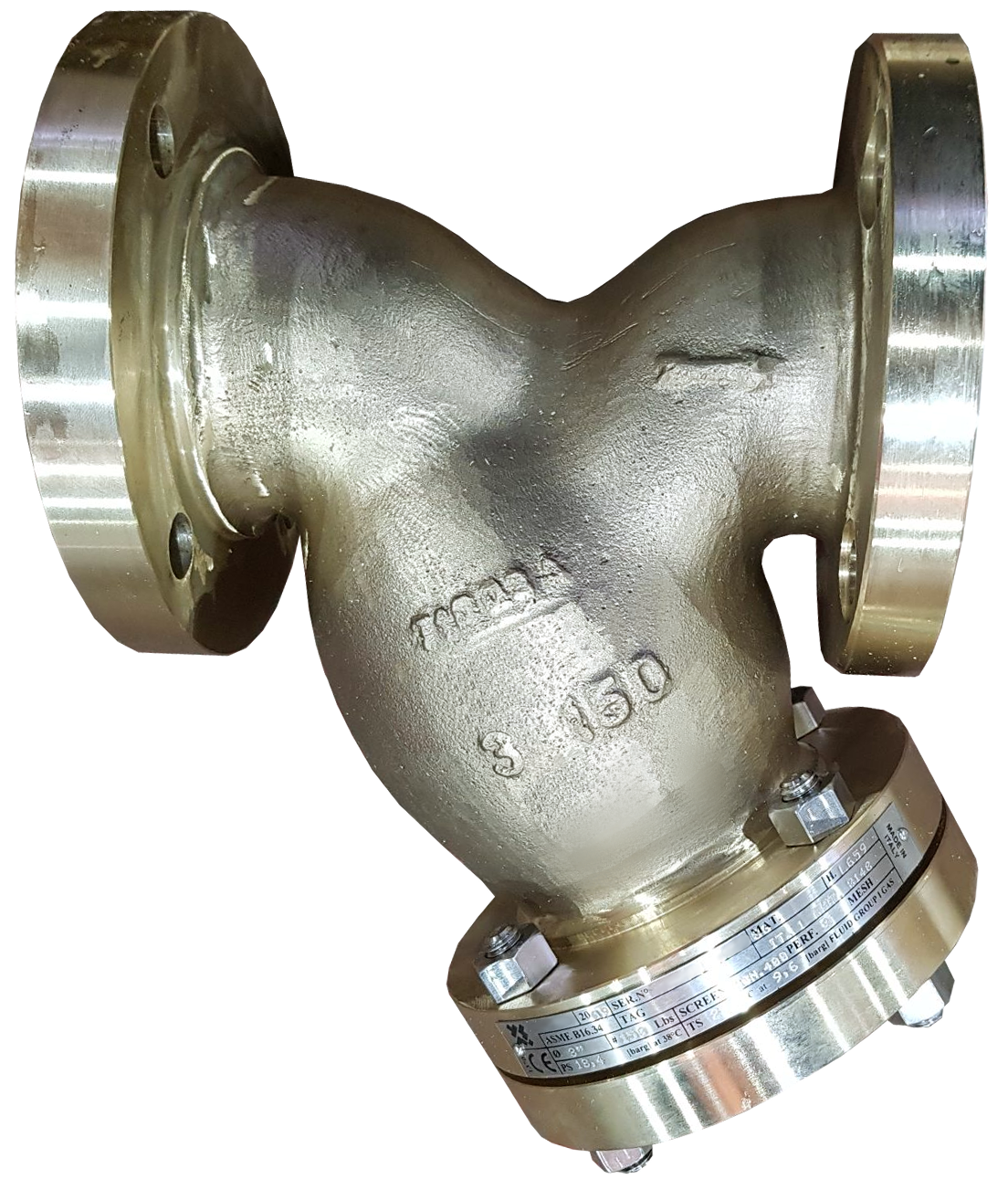

Y-Type Strainers: Flanged
Construction: Bolted Cover.
Main Design Codes: B16.5 & B16.25 .
Pressure Class: ANSI 150 - 2500.
Size Range: ½" - 12" in stock. Other sizes on request.
Connection Ends: RF/RTJ/BW.
Main Materials: Carbon Steel A216 WCB, A352 LCB, LCC; A351 CF8M.
Filtration: Standard 40 Mesh - Filtration 6mm to 50μm available on request.
Further materials available: Aluminium Bronze, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO.
Datasheets
Datasheet 13D – Fig Y700D - 150 Y-Type Strainer
Datasheet 14D – Fig Y700D - 300 Y-Type Strainer

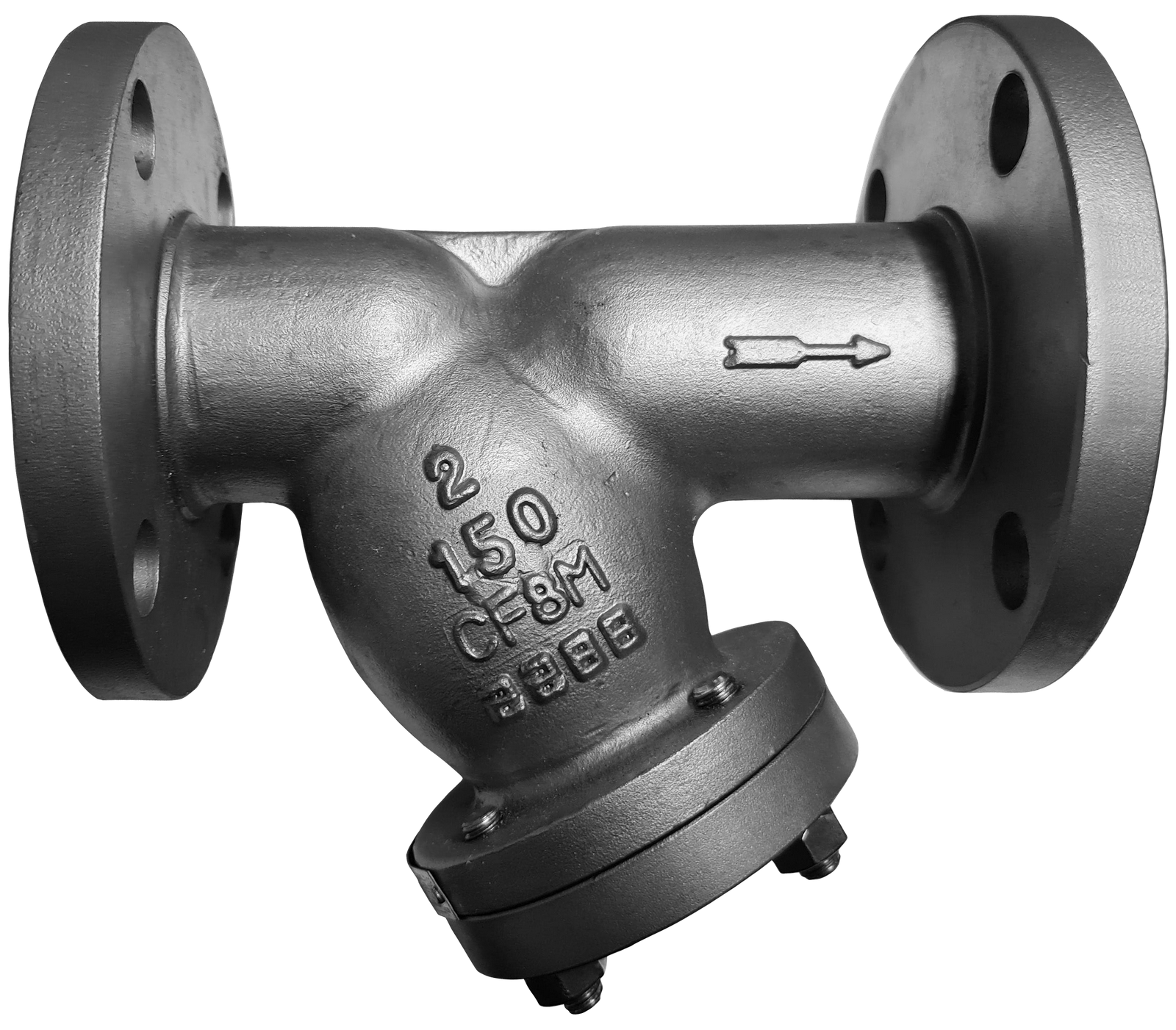

Construction: Bolted Cover.
Main Design Codes: B16.5 & B16.25.
Pressure Class: ANSI 150 - 2500.
Size Range: 2" - 24".
Connection Ends: RF/RTJ/BW.
Main Materials: Carbon Steel A216 WCB, A352 LCB, LCC; A351 CF8M.
Filtration: Standard 40 Mesh - Filtration 6mm to 50μm available on request.
Further materials available: Aluminium Bronze, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO.
Datasheets
Datasheet 1 – Fig 707 - 150 Y-Type Strainer
Datasheet 2 – Fig 707 - 300 Y-Type Strainer
Datasheet 3 – Fig 707 - 600 Y-Type Strainer
Datasheet 4 – Fig 707 - 900 Y-Type Strainer
Construction: Bolted Cover
Main Design Codes: B16.5 & B16.25
Pressure Class: ANSI 150 - 2500
Size Range: ½" - 1½"
Connection Ends: RF / RTJ / BW
Main Materials: Carbon Steel A216 WCB, A352 LCB, LCC; A351 CF8M,
Filtration: Standard 40 Mesh - Filtration 6mm to 50μm available on request.
Further materials available: Aluminium Bronze, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO.
Datasheets
Datasheet 7 – Fig 777 - 150 Y-Type Strainer
Datasheet 8 – Fig 777 - 300 Y-Type Strainer
Datasheet 9 – Fig 777 - 600 Y-Type Strainer
Datasheet 10 – Fig 777 - 900 Y-Type Strainer
Kaysafe Engineering Limited stock and supply a full range of Y-Type strainers. This section details flanged Y-Type strainers generally used on in-line filtration bolted between two counter-flanges. These Y-Type strainers are generally of cast materials, however we can supply forged and fabricated Y-Type strainers.
Sizes available are from ½” – 24”, class ratings from Class 150 through Class 2500. They range from Flanged RF and RTJ to ANSI B16.5 & Butt weld to ANSI B16.25.
Materials include Carbon Steel A216 WCB, A352 LCB, LCC; A351 CF8M, CF8 Stainless Steel, Aluminium Bronze, Duplex, Super Duplex, Chrome-Moly steels, 254SMO.
Non-destructive testing available: Dye Penetrant inspection (DPI); Magnetic Particle inspection (MPI); Positive Alloy Material Identification (PMI)
