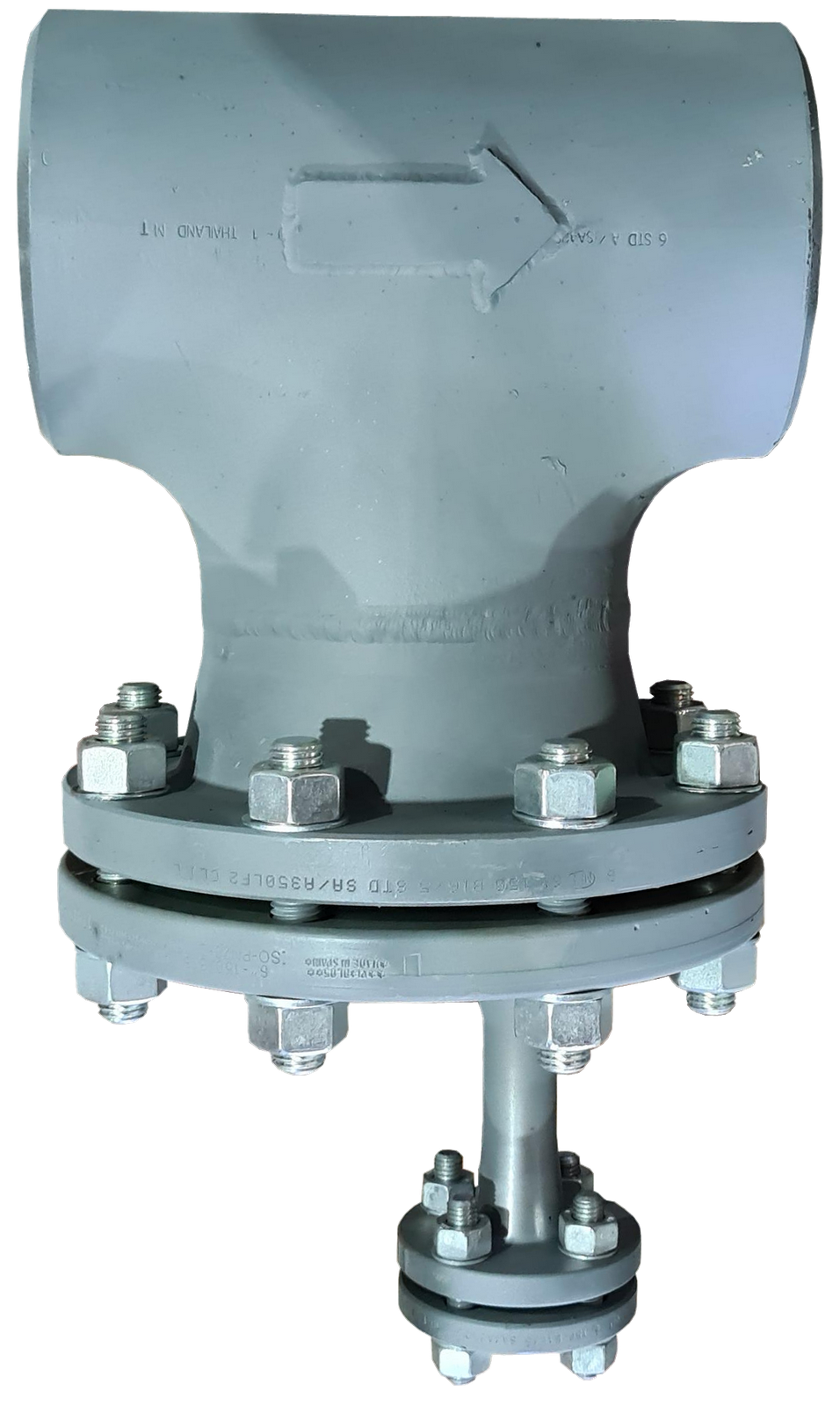

T-Type Strainers: Flanged / Butt-Weld

Construction: Bolted Cover.
Main Design Codes: B16.5 & B16.25.
Pressure Class: ANSI 150 - 2500.
Size Range: 2"  - 24". Other sizes on request.
Connection Ends: RF / RTJ / BW.
Main Materials: A234 WPB, A105N, A106 Gr.B Carbon Steel , LF2 Low Temperature Carbon Steel , 316/L Stainless Steel.
Filtration: Standard 40 mesh. ​Filtration 6mm to 50μm available on request.
Further materials available: CuNi Copper-Nickel, Chrome-Moly, Duplex, Super Duplex, Monel, Hastelloy, 254 SMO, Titanium.

Datasheets

 ​Datasheet 26 – Fig FT702 - 150 T-Type Strainer

 ​​Datasheet 27 – Fig FT702 - 300 T-Type Strainer

 ​​Datasheet 28 – Fig FT702 - 600 T-Type Strainer

Kaysafe Engineering Limited supply and manufacture a full range of pipeline strainers. The fabricated T-Type strainers detailed in this section are generally of wrought and forged materials, however we can supply a limited range of cast T-Type strainers.
Sizes available are from 2” – 24”, class ratings from Class 150 through Class 600. They range from Flanged RF and RTJ to ANSI B16.5 & Butt Weld to ANSI B16.25.
Materials include Carbon Steel, Low Temp Carbon Steel, Stainless Steel, Duplex, Super Duplex, Chrome-Moly steels, 254SMO, Copper-nickel (CuNi), Monel  & Titanium.
Non-destructive testing available: X-ray, Dye Penetrant Inspection (DPI), Magnetic Particle Inspection (MPI), Positive Alloy Material Identification (PMI).
